MR15-600 rated load 600kg, operating weight 1500kg, bucket capacity 0.3m³,digging bucket capacity 0.03m³

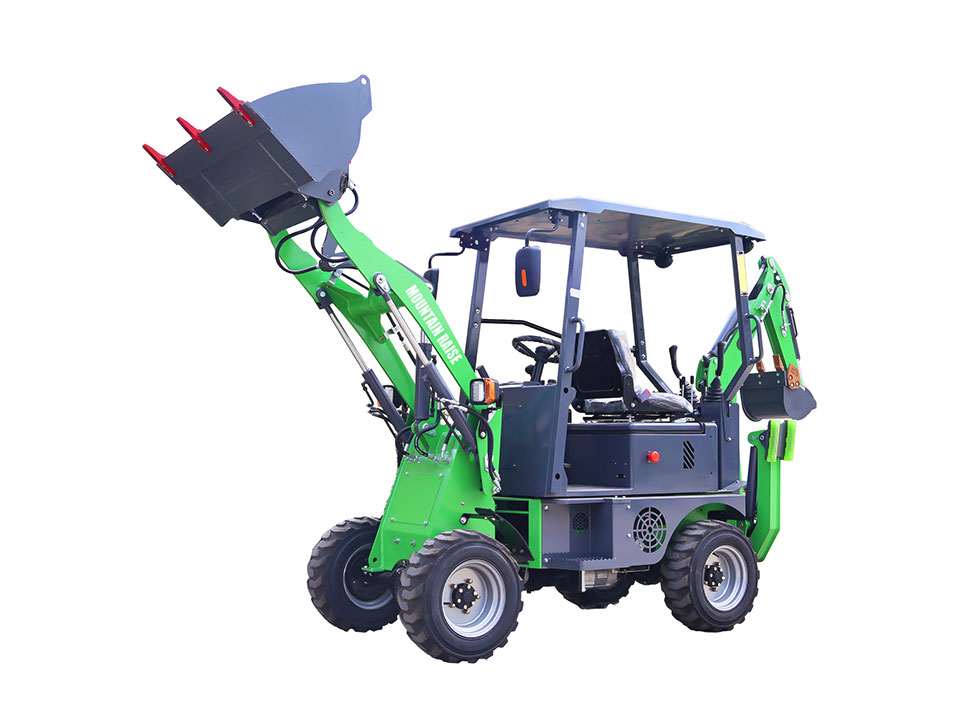

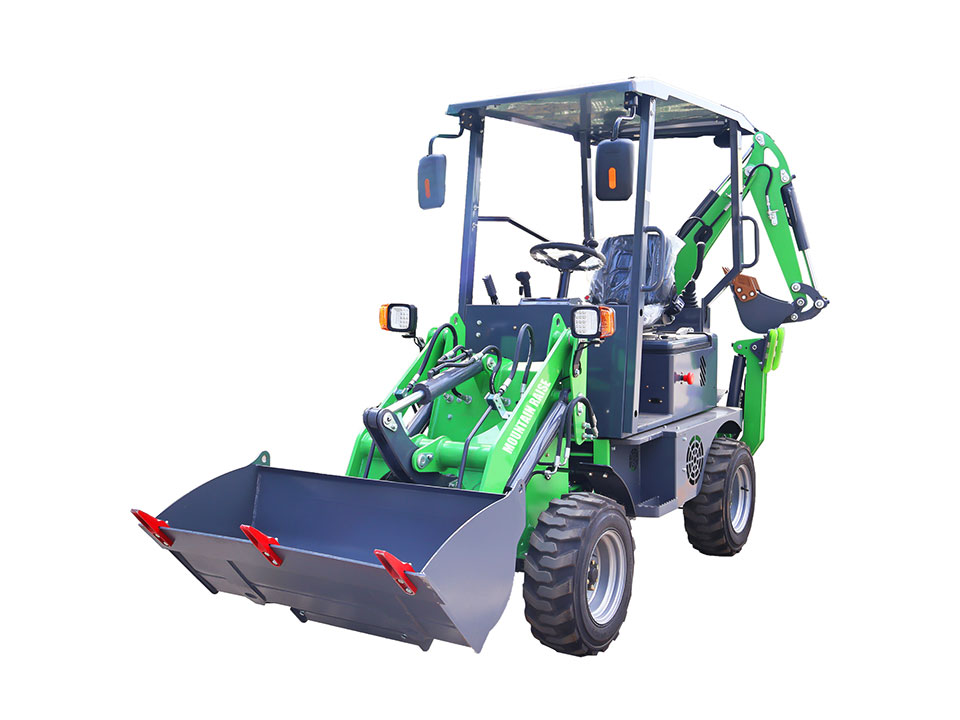

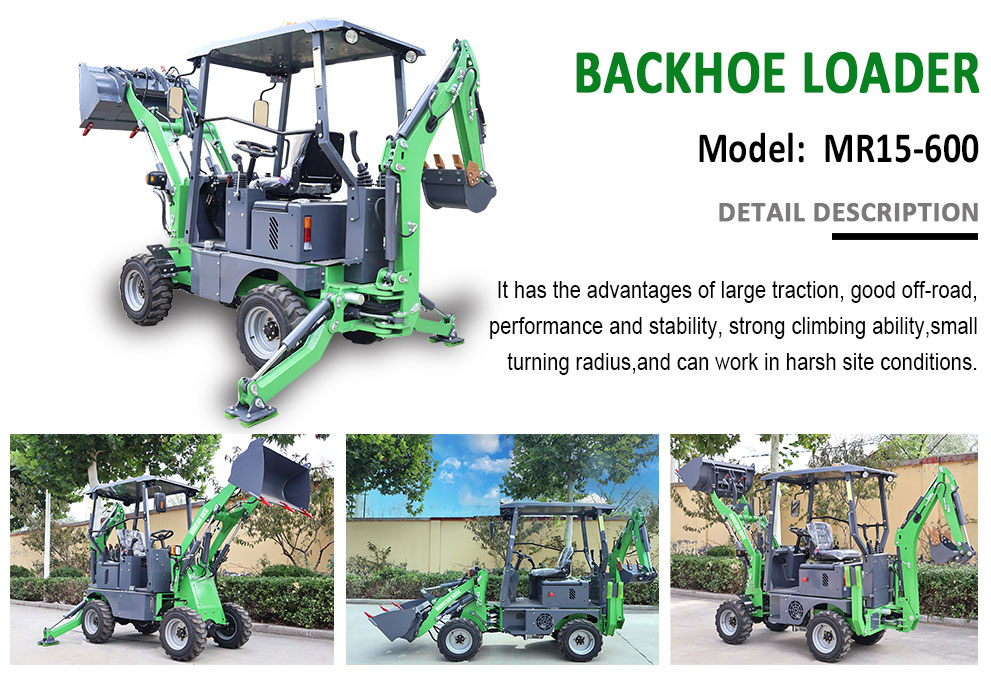

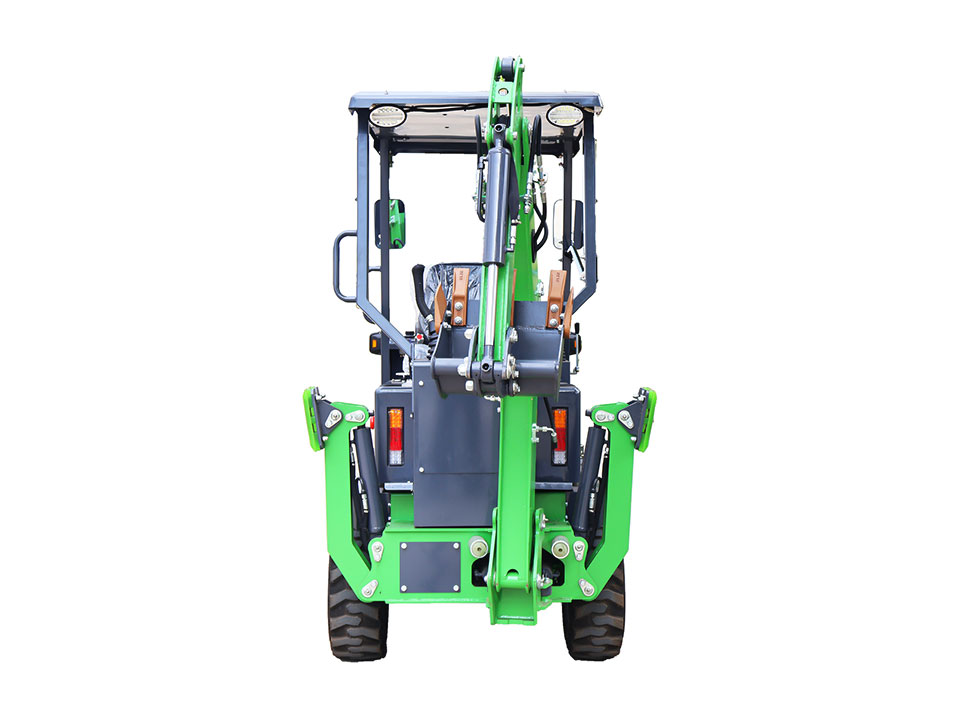

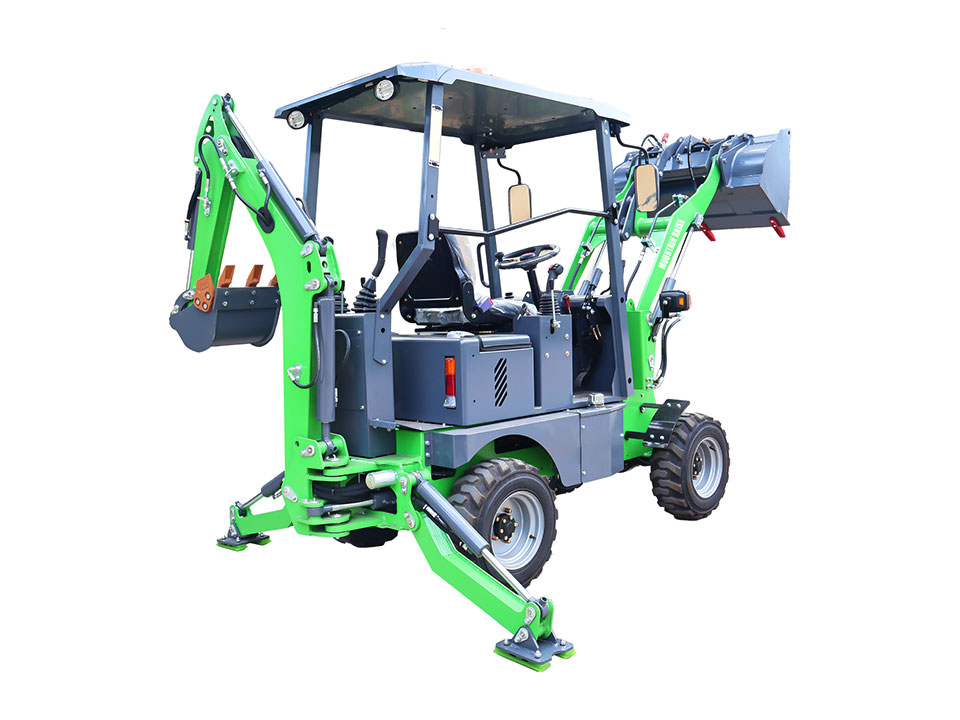

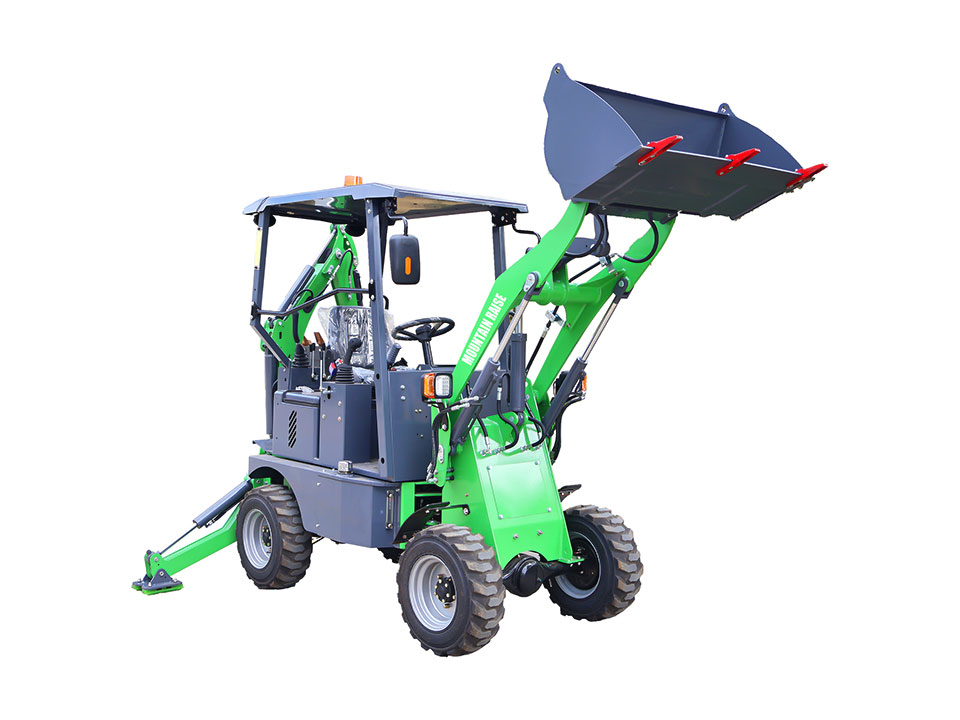

MR15-600 0.5Ton Mini Electric Backhoe Loader
This mini electric backhoe loader offers exceptional power and performance in a compact design,making it ideal for working in even the most confined spaces. It's capacity to maneuver through a narrow doorway renders it an exceptional apparatus for indoor demolition operations.

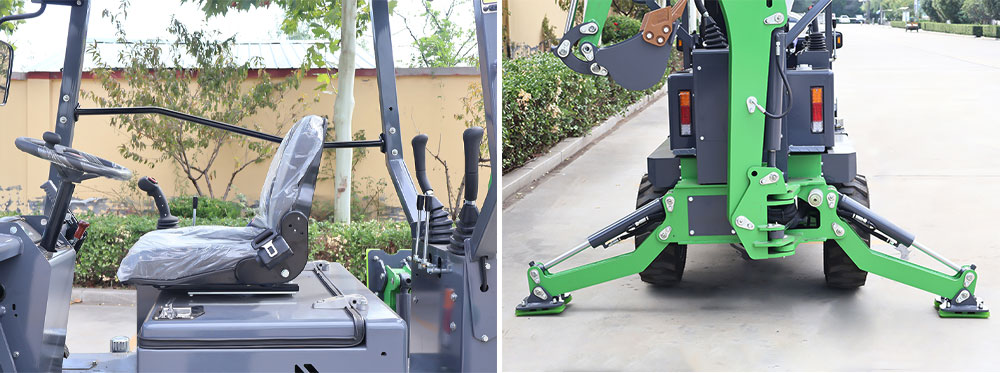

Swivel seat · Human engineering design Shock absorption · 360° rotating seat, switch operation platform · LCD dashboard&Multifunction button | Supporter · High strength support · Type A & Type H available · Hydraulic retraction |

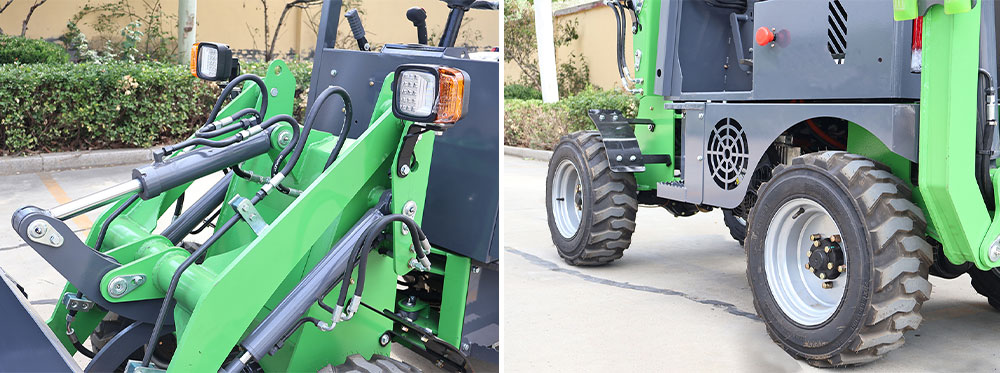

Tire · Tire size is 23*8.5-12 · Multiple pattern options · Wear-resistant and long service life | LED light · Good quality, spotlight headlight · Ensure operator safety and improve work efficiency · Ensure operators can see the environment more clearly at night |
| Dimension | |
| Overall Length | 3400mm |
| Overall Width | 1200mm |
| Overall Height | 2175mm |
| Total weight | 1500kg |
| Turning radius | 3100mm |
| High speed | 15km/h |
| Driving speed low speed | 8km/h |
| Min.Ground clearance | 200mm |
| Wheel tread | 1150mm |
| Loader part | |
| Loading bucket capacity | 0.3m³ |
| Max.Lifting height | 2520mm |
| Max.Dumping height | 1738mm |
| Max.Dumping distance | 700mm |
| Rated load capacity | 500kg |
| Excavation part | |
| Digging Depth | 1580mm |
| Digging Radius | 2670mm |
| Digging height | 2780mm |
| Bucket Backhoe | 0.03m³ |
| Battery | |
| Five Battery | 60V |
| Oil pump motor | 3000W |
| Travel motor | 3000W A/C |
| Tires | 23*8.5-12 |
| Boom lifting time | 4-7s |
| Boom rotation angle | 170° |
