MR946 rated load 4000kg, operating weight 11000kg, bucket capacity 2.0m³, engine brand Weichai，engine option Cummins
Mountain Raise 946 4 Ton Wheel Loader
—It features high efficiency, energy-saving, and strong power.
—Engine,adopts Weichai(129KW),featuring strong power, reliable performance, and high efficiency.
—Dumping height,3670mm, featuringextensive loading/unloading scope and high efficiency.
—Multiple working,attachments,including bale grab,coal bucket are at your choice.

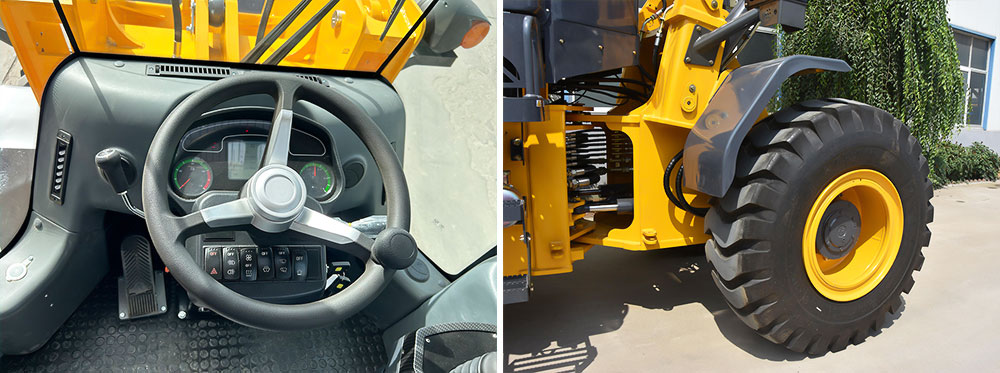

Cab with broad view, noise-isolation and vibration absorb-er meets all kinds of operation,which can bedismantled for Large space.The low vibration suspending seat (Optional) is designed specially for the operator that improve the human feeling. | The joystick control system(Optional) ensure easy operation and more comfortable. |
Gears adjustable at will, flexible operation | Wear-resistant tires.Rubber tires have a long wear-resistant service life. |
| ltem | Specifications |
| Rated Load | 4000kg |
| Operating weight | 11000kg |
| Bucket capacity | 2.0m3 |
| Dimensions(L*W*H) | 8200x2500x3200mm |
| Max.Dumping height | 3000mm |
| Max.Dumping Reach | 1205mm |
| Vax. Raising Height | 5050mm |
| Transmission system | |
| Torque Converter | KINGLETE |
| Gearbox mode | Power shift normally engaged straight gear |
| Gears | F4/R4 |
| Max.Speed | 38km/h |
| Drive Axles | |
| Wheel base | 2860mm |
| Wheel track | 1900mm |
| Tread | 1900mm |
| Min. ground clearance | 450mm |
| ENGINE | |
| Model | WEICHAI |
| Rated Power | 129kw |
| Rated speed | 2400r/min |
| Tires | |
| Size | 20.5-25 |
